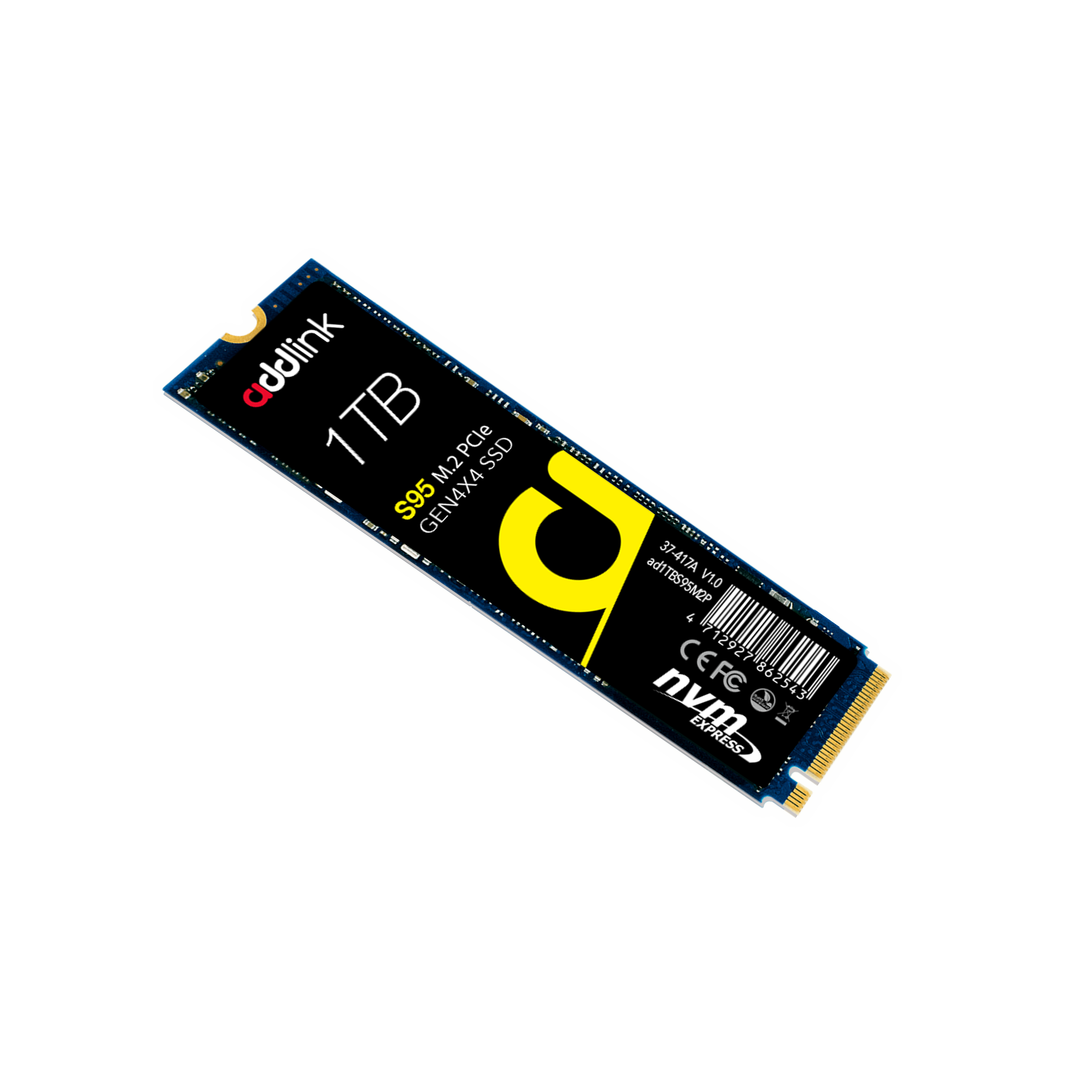

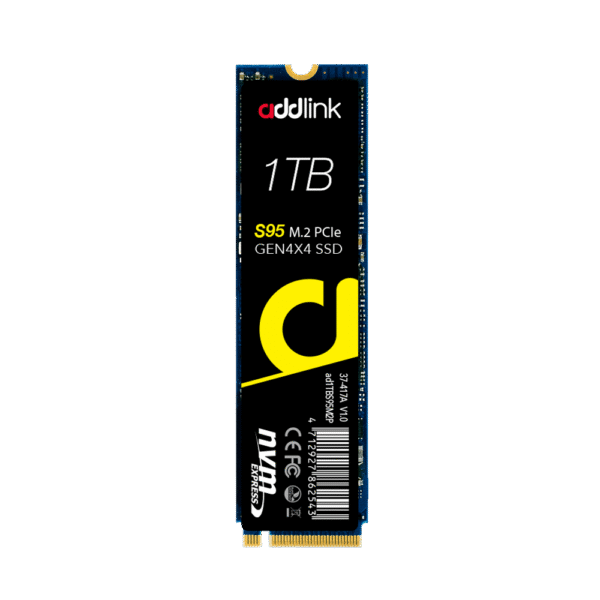

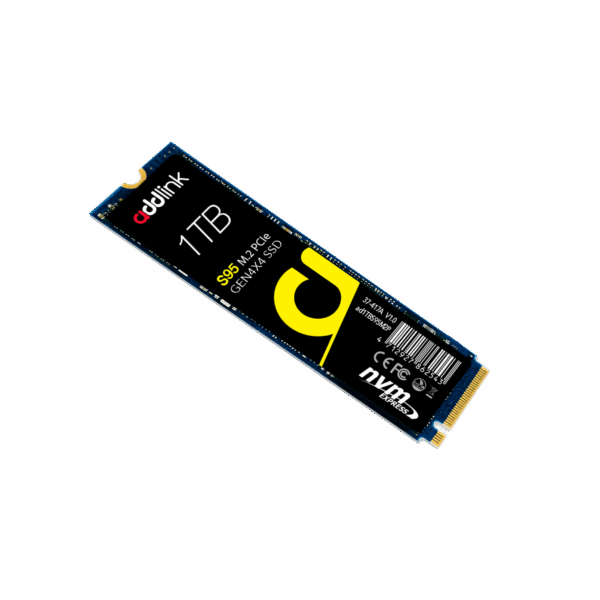

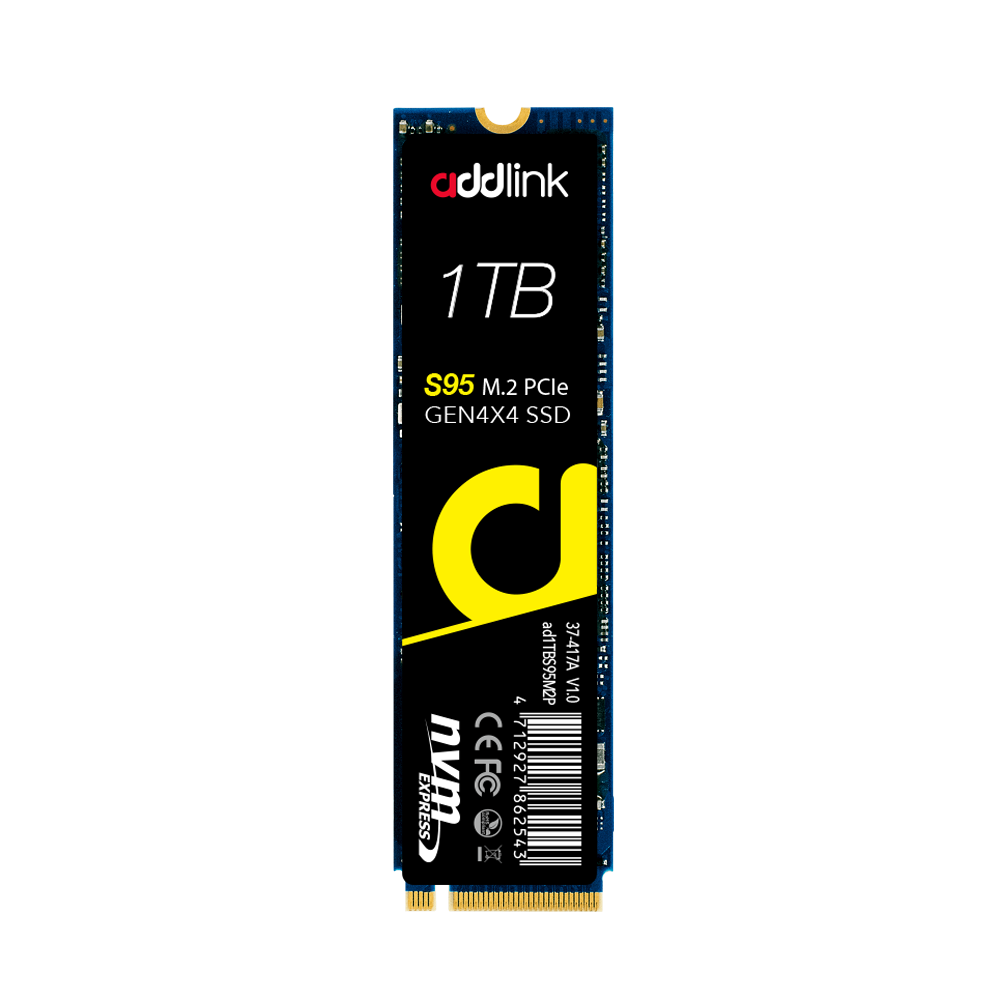

Addlink S95 NVMe | GEN4X4 1.4 M.2 PCIe SSD (1TB)
The Addlink S95 NVMe 1TB Gen4x4 SSD brings PCIe 4.0 performance to the M.2 2280 form factor for elite gaming rigs, workstations, and high‑end laptops. Leveraging the NVMe 1.4 protocol and advanced caching, it ensures ultra‑fast responsiveness and sustained reliability under heavy loads.
Engineered for Performance & Endurance:
- Gen4x4 PCIe Speeds: 7,200/6,500 MB/s performance.
- Next‑Gen Controller: Phison PS5018‑E18 with DRAM.
- 3D TLC NAND: Intelligent SLC caching.
Specification
| Capacity | 1TB |
| NAND Flash | 3D TLC |
| DRAM Cache | External DDR4 @2666 Cache |
| Dimensions | 1TB:80(L)x22(W)x2.15(H)mm, 2TB:80(L)x22(W)x3.5(H)mm |
| Interface | NVMe 1.4 PCIe GEN4x4. Backwards compatible with PCIe 3.0 platforms. |
| Form Factor | M.2 2280 |
| Seq. Read/Write (MB/s) | 1TB: 7200/6000, 2TB: 7200/6500, 4TB: 7200/6500, 8TB: 7000/6000 |
| IOPS | 1TB: 750K/1000K, 2TB: 1000K/1000K, 4TB: 1000K/1000K |
| Operating Temp. | 0°C ~ 70°C |
| Storage Temp. | -40°C ~ 85°C |
| MTBF | 1.8 million hours |
| Warranty Period | 5 Years** |
| Advanced Flash Management | Advanced Wear Leveling, Bad Block Management, TRIM, SMART, Over-Provision |
| Features | End-to-end data path protection, Thermal throttling, SmartECC™, SmartRefresh™, Drive log |
| addlink Toolbox | Support |
*Make sure that your computer has an M.2 slot. According to our inside test by CrystalDiskMark software, read/write speed depends on the device, interface, usage and other factors so that actual performance may be lower. ** Limited warranty based on 5 years or “Percentage Used”, which can be found using Addlink’s toolbox or CrystalDiskInfo. Please click Warranty Policy for more information.
