CZUR ET Ultra
The CZUR ET Ultra is a 40 MP overhead scanner performing A3-sized dual-page scans in 1.5 s, with tri‑laser curve flattening, anti-glare LED lighting, and a built-in LCD preview. Works with intuitive OCR and auto-enhancement software (180+ languages), ideal for flawless book digitization.
Ultra-Fast A3 Scanning with Smart Image Enhancement
40 MP CMOS & 1.5 s Dual‑Page Scan
Tri‑Laser Curve Flattening & Finger Removal
Built-in LCD, LED Lighting & Smart OCR
Specification
CZUR ET Ultra Overhead Book Scanner

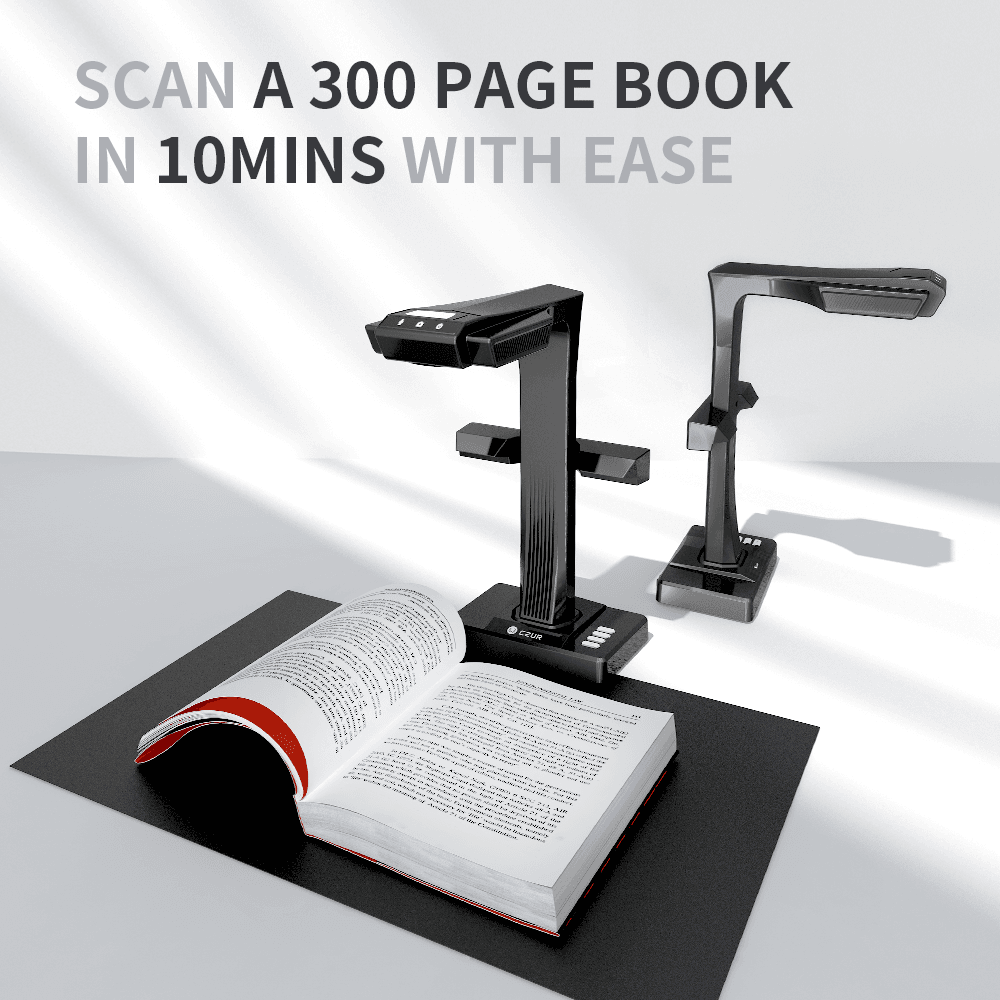

A next‑generation ET‑series scanner featuring a 40 MP CMOS sensor and tri‑laser curve flattening, the CZUR ET Ultra delivers pristine A3‑sized scans in about 1.5 seconds per page (dual‑page scan). Equipped with LED top and side lighting, anti‑glare performance, a built‑in preview LCD, and intelligent image processing, it automatically corrects tilt, removes fingers, splits pages, and applies OCR across 180+ languages. Ideal for libraries, offices, or home use, it streamlines high‑quality digitisation with minimal user input.
Key Specifications
- Sensor / Resolution: 40 MP CMOS (7,296 × 5,472), ~420 dpi optical
- Scan Speed: ≈ 1.5 s per page; dual‑page in 1.5 s (~80 pages/min)

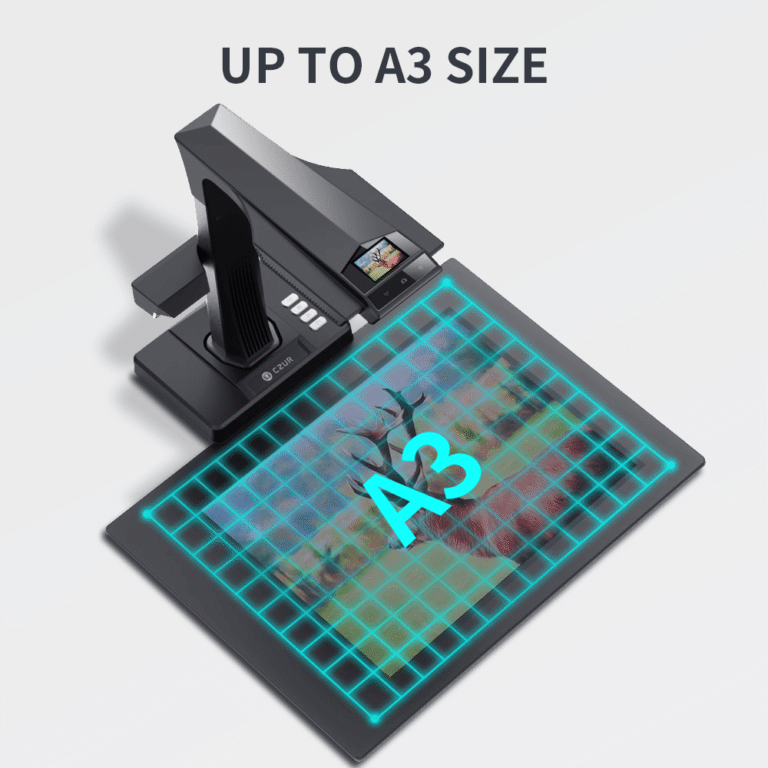

- Scan Format: Flat ≤ A3; books ≤ A4
- Curve Flattening: 3‑laser-assisted patented algorithm stabilizes open book curvature
- Lighting System: LED top & side lights eliminate glare on glossy surfaces
- Built‑in LCD Preview: 2.4″ TFT display with real‑time framing view
- Processor & Memory: Dual‑core 32‑bit OpenRISC CPU, 1 GB DDR with high‑speed DDR cache
- OCR Software: ABBYY engine supporting 180+ languages; exports JPG, PDF, searchable PDF, Word, Excel, TIFF, PNG, BMP
- Auto Image Enhancements: Includes tilt correction, finger removal, auto-cropping, auto‑page split, background purification, watermarking, trimming
- Connectivity: USB 2.0 High‑Speed; preview and scanning options controlling via PC or hardware buttons & foot pedal
- Dimensions / Weight: 375 × 220 × 390 mm; 1.5 kg net weight
- Power: AC 100–240 V 50/60 Hz → DC 9 V 1.5 A power adapter
- Supported OS: Windows XP–11, macOS 10.11 and above
