TerraMaster | D5 Thunderbolt 3 (5Bays)
Large Storage Capacity and Lightning Speed

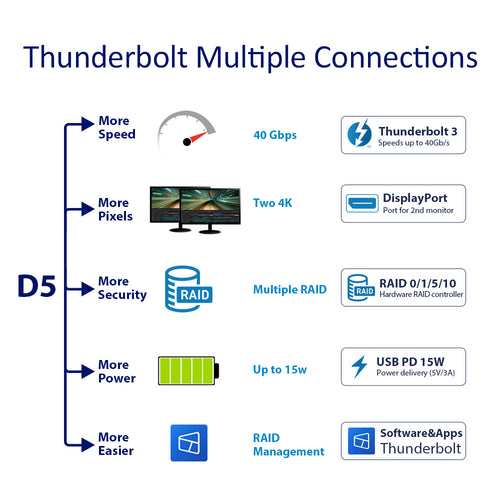

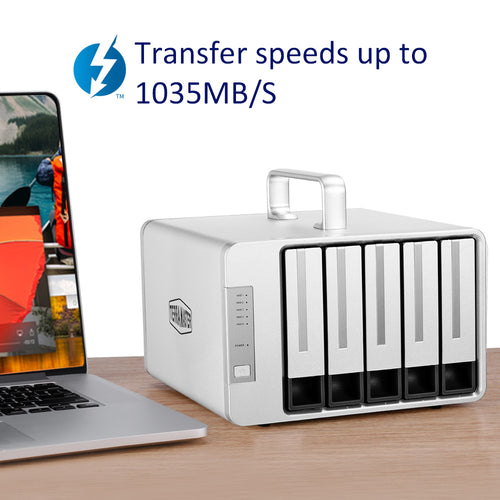

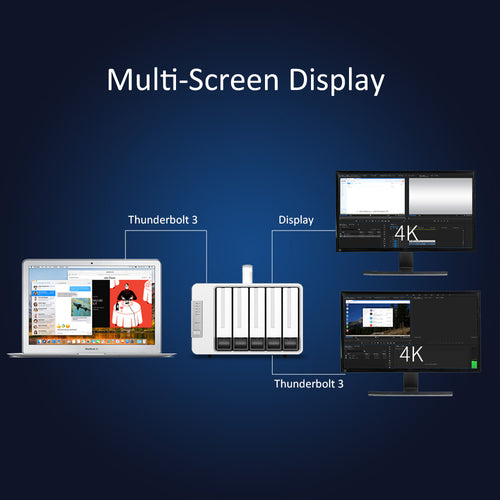

The 5-bay D5 Thunderbolt 3 from TerraMaster supports 3.5″ SATA disks and 2.5″ SSDs, offering up to 90TB of storage capacity. Equipped with a 40-Gbps interface, it achieves read/write speeds up to 1,035 MB/s in RAID 0 mode and supports daisy chaining across multiple Thunderbolt™ 3 devices. With an HD DP digital interface for 4K HD display connectivity, it supports multi-screen display with up to 3 screens. Operating with RAID 0, 1, 5, and 10, as well as JBOD disk array modes, it ensures data security and efficient storage utilization. Designed with state-of-the-art storage technologies, it is ideal for demanding applications like 4K video editing and seamless 4K streaming. Certified by Apple and Intel for consistent performance and reliability.
- Speed: Lightning-Fast RAID 0/1/5/10/SINGLE
- Bays: 5-Bay Professional-Grade RAID
Storage for Video Editing and Photography
Specification
TerraMaster D5 Thunderbolt 3
| Disk Slot Number | 5 |
| Compatible Disk Types | 3.5″ SATA HDD |
| 2.5″ SATA HDD | |
| 2.5″ SATA SSD | |
| File System | NTFS, APFS, Mac OS,FAT32,EXT4,exFAT |
| Maximum Internal Raw Capacity | 80TB (16 TB drive x 5) (Capacity will vary along with the RAID type) |
| RAIDs Supported | SINGLE DISK,JBOD,RAID 0,RAID 1,RAID5,RAID10 Note: Mac 0S computers do not support RAlD online expansion and migration. |
| Hardware RAID | √ |
| RAID Manager Software | √ |
| RAID Manager Software Language | English, Chineses, Japanese |
| RAID Online Expansion | √ |
| RAID Migration | √ |
| RAID Auto-rebuilding | √ |
| Drive Hot Swap | √ |
| HDD Sleep | √ |
| HDD S.M.A.R.T. Inspection | √ |
| Sector Inspection and Parity Check | √ |
| SSC Cache | √ |
| Daisy Chain | √ |
| HDD NCQ Technology | √ |
| Alert Notice | √ |
| Event Log | √ |
| External Ports | |
| USB | / |
| Thunderbolt Data Transmission | 40Gb Thunderbolt 3 x 1 |
| Thunderbolt Daisy Chain | 40Gb Thunderbolt 3 x 1 |
| USB Host | USB 3.1 Gen2 host (Use to connect USB storage device) |
| DP Interface | DP 1.4 x 1 |
| Power Socket | DC IN 12V |
| Reading/writing Speed (max.) | |
| Reading Speed (max.) | Read: 1035MB/sec(Use HDD under RAID 0 mode) Read: 830MB/sec(Use HDD under RAID 5 mode) |
| Writing Speed (max.) | Write: 917MB/sec(Use HDD under RAID 0 mode) Write: 850MB/sec(Use HDD under RAID 5 mode) |
| Appearance | |
| Size (H*W*D) | 227 x 225 x 176 mm |
| Packaging Size (H*W*D) | 300*275*210 mm |
| Weight | Net Weight: 2.3Kg Gross Weight: 3.5Kg |
| Others | |
| System fan | 80 mm x 80 mm x25mm (x 2) |
| Fan mode | Smart |
| Noise Level | 19.8dB(A) |
| Power Supply | |
| Power Supply | 120W |
| AC Input Voltage | 100V to 240V AC |
| Current Frequency | 50/60 HZ, Single Phase |
| Power Consumption | 76.8W(Access) |
| Environment Temperature | |
| Working Temperature | 5°C ~ 40°C (40°F ~ 104°F) |
| Storage Temperature | -20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity | 5% ~ 95% RH |
| Supported OS | Windows OS、Mac OS |
| Warranty | 2 years |
| Certificate | CE, FCC, CCC, KC |
| Environment | RoHS compliance |
| TerraMaster D5 Thunderbolt 3 Package Contents: |
Host unit (x1) |
| Power cord (x1) | |
| Thunderbolt 3 cable (40Gbps) 0.8 Meter (x1) | |
| Quick Installation Guide (x1) | |
| Power adapter (x1) | |
| Screws (several) | |
| Limited Warranty Note x 1 |
