TerraMaster D6-320: High-Speed, High-Capacity External Storage Solution

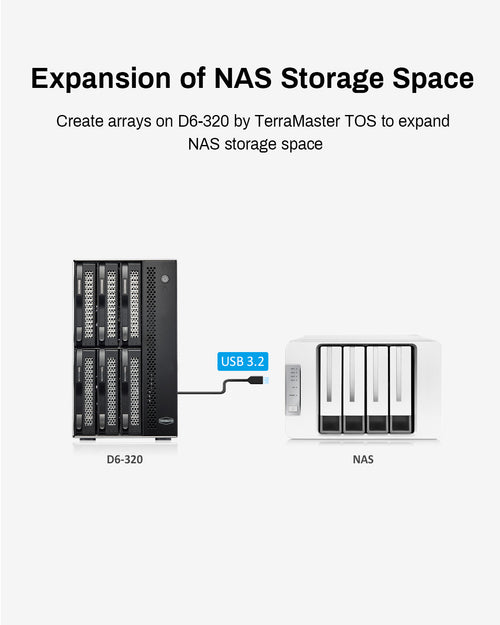

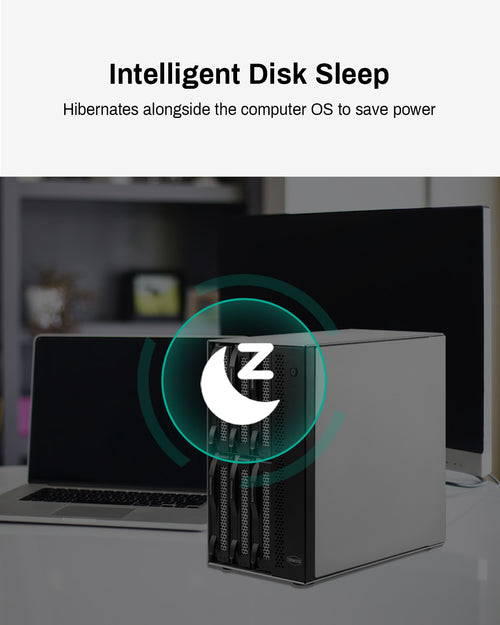

The TerraMaster D6-320 is a powerful 6-bay external hard drive enclosure offering exceptional speed and massive storage capacity.Featuring a USB 3.2 Gen2 interface, the D6-320 delivers data transfer speeds up to 10 GB/s (with 6 hard drives installed) and can reach 510 MB/s with a single SSD. It boasts a maximum storage capacity of 132TB (using compatible 22TB drives) and supports various 3.5-inch and 2.5-inch hard drives and SSDs. While RAID functionality isn’t built-in, the D6-320 allows for hot-swapping drives and can even expand the storage of TerraMaster NAS devices running TOS 5.1 or above. For added convenience and security, the D6-320 features intelligent sleep mode, power protection, and a low-noise cooling system. This compact and versatile enclosure is ideal for users demanding a high-performance and scalable storage solution.
- Bays: 6-bay USB 3.2 Gen2 10Gbps External Hard Disk Enclosure
Specification
| TerraMaster DAS D6-320 | |
| Disk Slot Number | 6 |
| Compatible Disk Types | 3.5″ SATA HDD |
| 2.5″ SATA HDD | |
| 2.5″ SATA SSD | |
| File System | NTFS, APFS, Mac OS,FAT32,EXT4,exFAT |
| Maximum Internal Raw Capacity | 132 TB (22 TB drive x 6) (Capacity will vary along with the RAID type) |
| RAIDs Supported | SINGLE DISK |
| Hardware RAID | / |
| RAID Manager Software | / |
| RAID Manager Software Language | / |
| RAID Online Expansion | / |
| RAID Migration | / |
| RAID Auto-rebuilding | / |
| Drive Hot Swap | √ |
| HDD Sleep | √ |
| HDD S.M.A.R.T. Inspection | / |
| Sector Inspection and Parity Check | / |
| SSC Cache | / |
| Daisy Chain | / |
| HDD NCQ Technology | / |
| Alert Notice | / |
| Event Log | / |
| External Ports | |

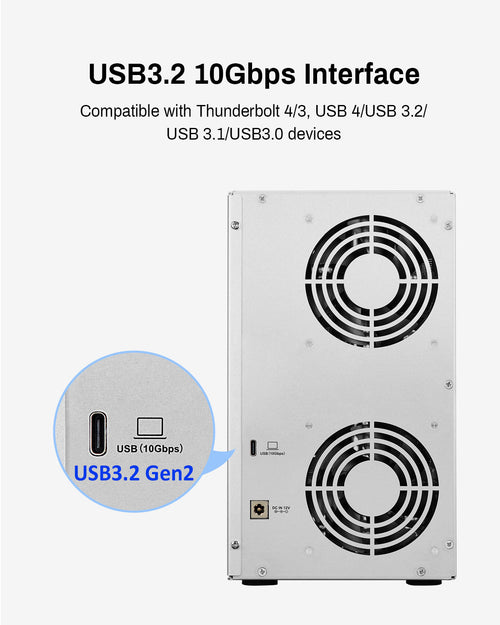

| USB | USB3.2 Type-C gen2 10Gbps |
| Thunderbolt | / |
| DP Interface | / |
| Network Interface | / |
| USB HOST Interface | / |
| Power Socket | DC IN 12V |
| Reading/writing Speed (max.) | |
| Reading Speed (max.) | Read：520MB/s ( SSD* 1 ); Read：1016MB/s ( SSD* 6 )； |
| Writing Speed (max.) | Write：500MB/s ( SSD*1 ); Write：986MB/s ( SSD*6 )； |
| Appearance | |
| Size (H*W*D) | 226 x 130 x 218 mm |
| Packaging Size (H*W*D) | 312 x 189 x 267 mm |
| Weight | net weight: 3.4 Kg Gross Weight: 4.5 Kg |
| Others | |
| System fan | 80 mm x 80 mm x25mm (x 2) |
| Fan mode | Smart |
| Noise Level | 28.4dB(A) |
| Power Supply | |
| Power Supply | 120 W |
| AC Input Voltage | 100V to 240V AC |
| Current Frequency | 50/60 HZ, Single Phase |
| Power Consumption | 2.0 W(Access) |
| Environment Temperature | |
| Working Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity | 5% ~ 95% RH |
| Supported OS | Windows OS、Mac OS、Linux |
| Warranty | 2 years |
| Certificate | CE, FCC, CCC, KC |
| Environment | RoHS compliance |
| TerraMaster DAS D6-320 Package Contents: |
Host unit (x1) |
| Power cord (x1) | |
| USB Cable C to Type-C (10Gb) (x1) | |
| Quick Installation Guide (x1) | |
| Power adapter (x1) | |
| Screws (several) | |
| Limited Warranty Note x 1 |
