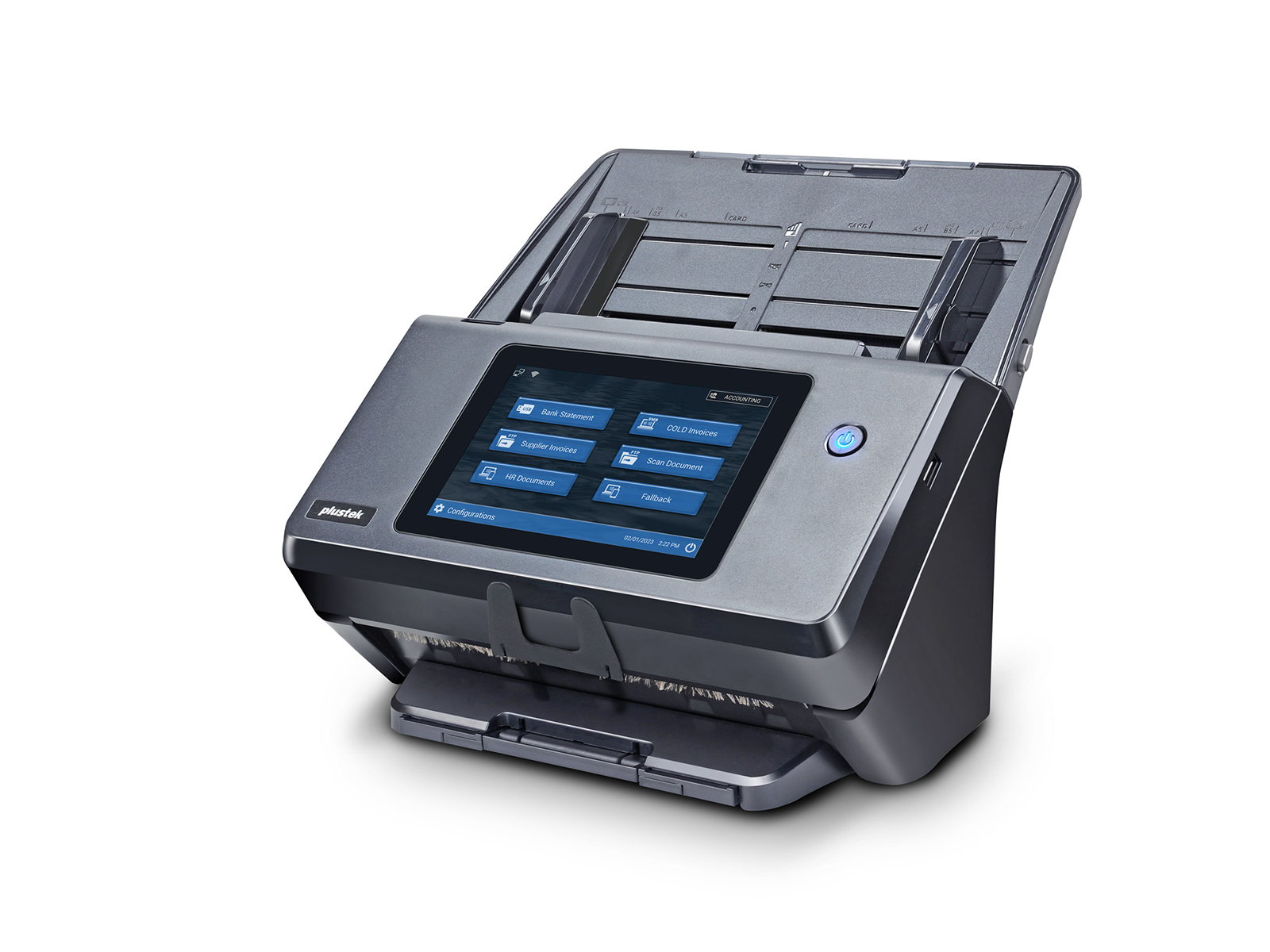

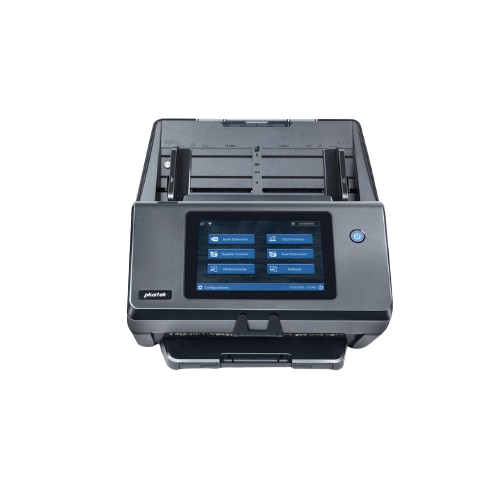

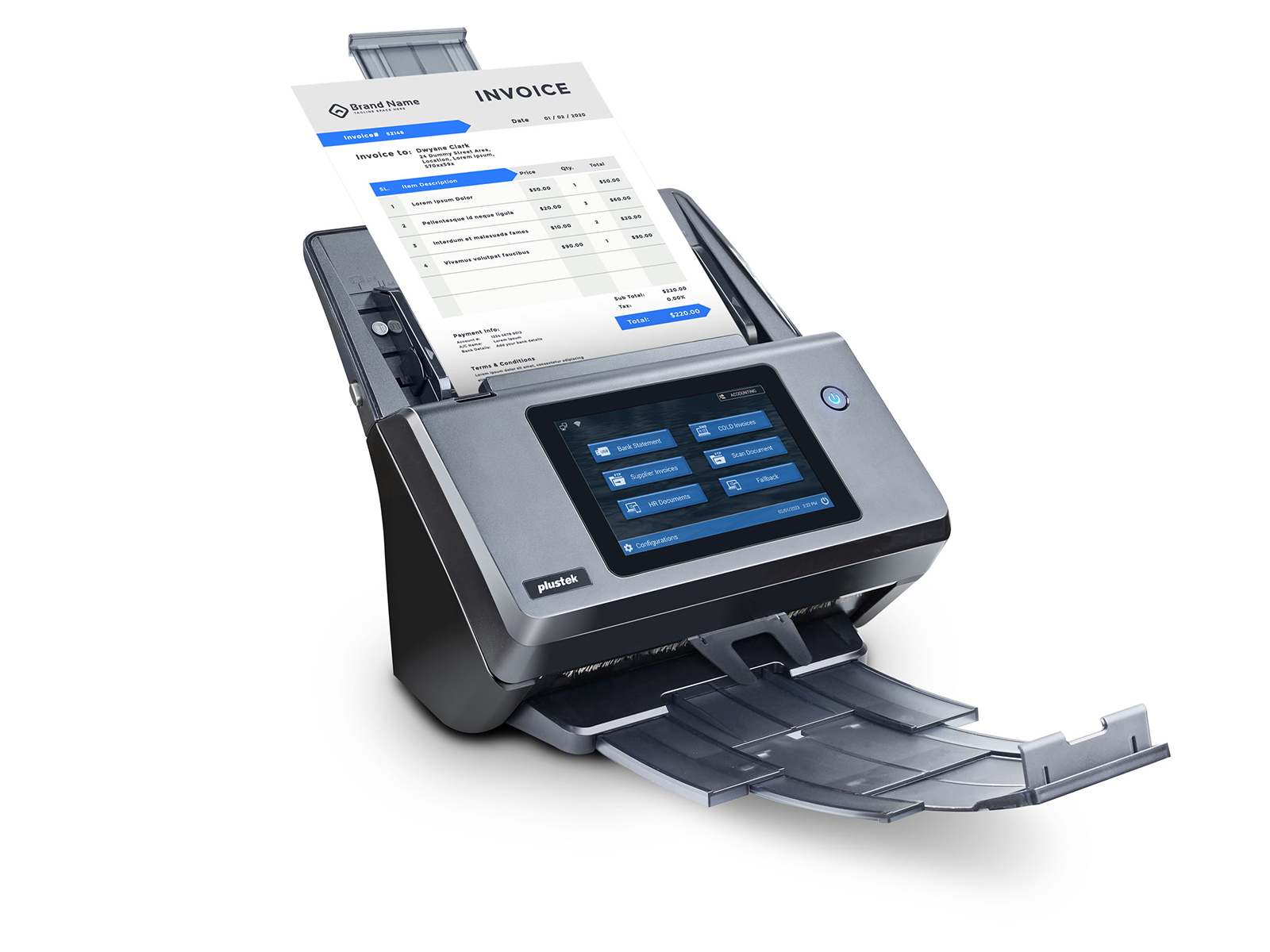

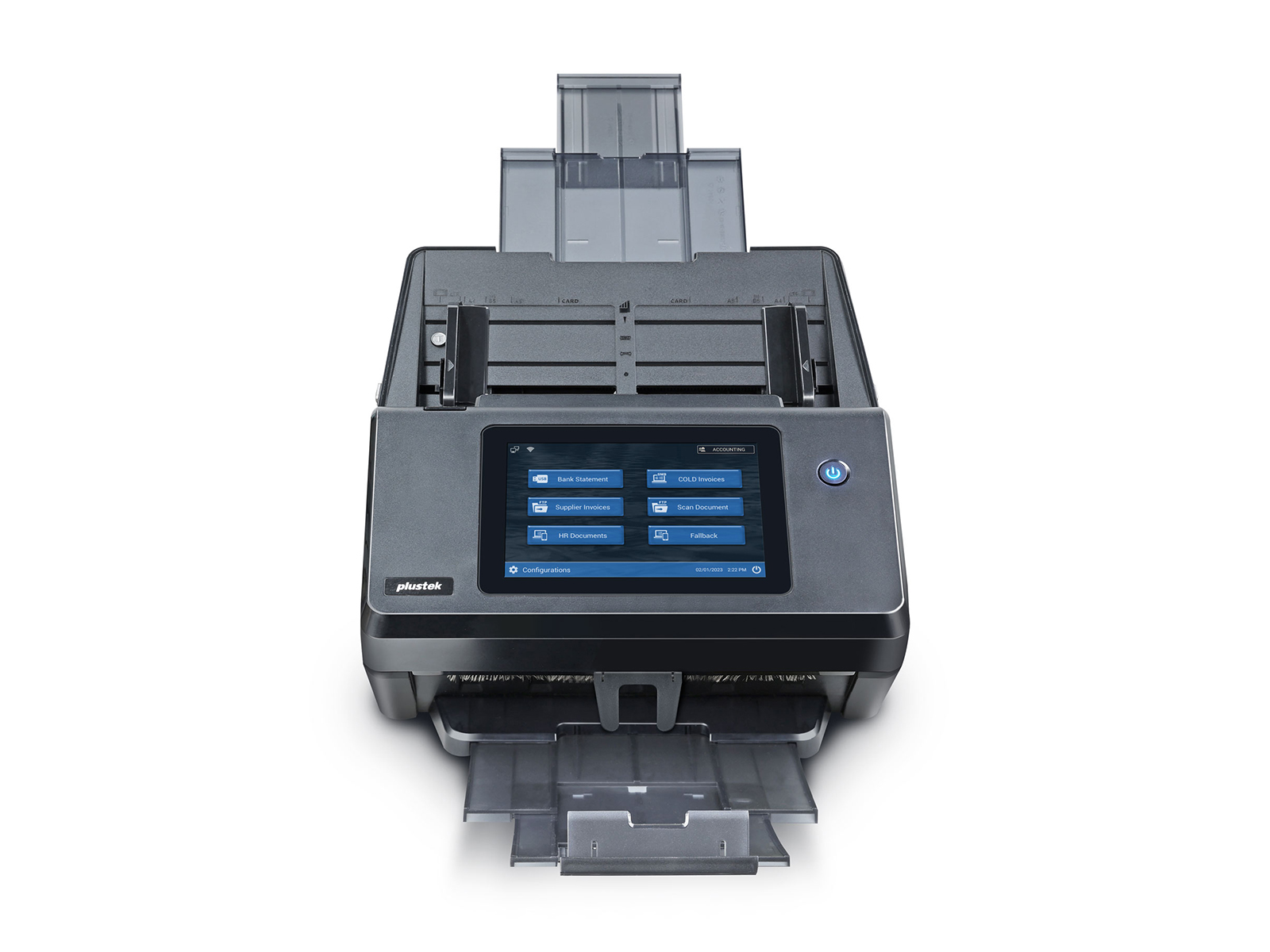

Plustek eScan A450 Pro | High-Speed Duplex Network Document Scanner
The Plustek eScan A450 is a high-performance network document scanner designed for efficient office document digitization. Featuring fast duplex scanning, a 7-inch touchscreen, and built-in OCR, it simplifies document capture and sharing while supporting demanding business workflows.
Engineered for High-Speed Office Document Scanning:
- Fast Duplex Scanning: Delivers up to 60 ppm and 120 ipm at 300 dpi with 600 dpi optical resolution.
- Efficient Document Handling: 100-sheet automatic document feeder with ultrasonic multi-feed detection and an 8,000-sheet daily duty cycle.
- Intuitive Touchscreen Control: 7-inch IPS multi-touch display (1280 × 800) with built-in OCR for convenient document processing.
- Flexible Network Connectivity: Supports Ethernet, Wi-Fi, USB, and scanning to email, FTP, and SMB network folders.
Specification
| Specification | Details |
| Image Sensor | CIS x 2 (Duplex Scanner) |
| Light Source | LED |
| Optical Resolution | 600 dpi |
| Hardware Resolution | 600 x 600 dpi |
| Scanning Speed | 60 ppm / 120 ipm (Color / Gray / B/W, 300 dpi, A4 Portrait) |
| Scan Modes |
• Color: Input 48-bit, Output 24-bit
• Grayscale: Input 16-bit, Output 8-bit
• Black & White: 1-bit
|
| ADF Capacity |
1. 100 sheets (A4/Letter, 70 g/m² or 18 lbs)
2. 30 sheets (Business Cards, landscape feeding)
3. Plastic Card, Max. thickness under 1.2 mm (landscape feeding)
|
| Scanning Area (W x L) |
Max: 8.5″ x 14″ (for long paper: 8.5″ x 200″)
Min: 0.52″ x 0.52″
|
| Acceptable Paper Sizes (W x L) |
Max: 9.65” x 200”
Min: 2” x 2”
|
| Acceptable Paper Weight (Thickness) | 7.2 to 110 lbs |
| Multi-feed Detection | With ultrasonic technology |
| Daily Duty Scan (Sheets) | 8,000 |
| Separate Roller Lifetime (Scans) | 300,000 |
| Pick Roller Lifetime (Scans) | 300,000 |
| Friction Roller Lifetime (Scans) | 200,000 |
| Action Button | Power |
| Power Supply | 24 Vdc / 2.7 A |
| Network Functions |
• Scan to USB
• Scan to FTP / SFTP / FTPS
• Scan to Network (SMB 2.0 / 3.0)
• Scan to SMTP
• Scan to SharePoint 2010 / 2013 / 2016 / 2019
• Scan to SharePoint Microsoft 365
• Scan to OneDrive for Business
• Scan to Outlook
• Scan to OneNote Online
• Scan to Microsoft Exchange
• Scan to Azure File Storage
|
| Network Connectivity | Ethernet, Wi-Fi |
| Interface | USB 2.0 Type A x 2, USB 2.0 Type B x 1, RJ45 (network connection) x 1 |
| Net Weight | 9.04 lbs |
| Dimensions (W x D x H) | 12.59″ x 11.74″ x 9.32″ |
| Operation Panel | Display: 7″ 1280 x 800 pixels with IPS wide view multi-touch screen |
| Protocol | TWAIN Compliant, Network TWAIN Compliant |
| Built-in OCR | Yes |
