SmartOffice | PT2160

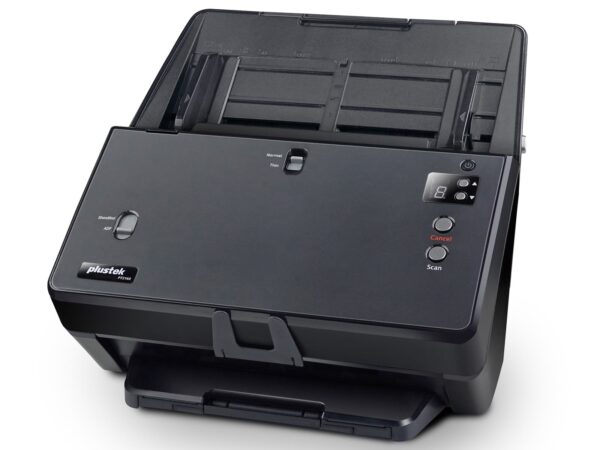

High-Speed Document Scanning with the PT2160
The Plustek SmartOffice PT2160 is a versatile and efficient document scanner designed for office workgroups. It offers features like automatic document feeding, a thickness switch for reliable scanning of various paper types, and high-quality image capture. 2 Its compact design and user-friendly interface make it a convenient choice for digitizing documents, photos, and receipts.
SKU
T300-1
Category Plustek ADF & Sheet-Feed Scanners
Specification
Image Sensor | CIS x 2 (Duplex Scanner) |
---|---|
Light Source | LED |
Optical Resolution | 600 dpi |
Interpolated Resolution | 1200 dpi |
Hardware Resolution | 600 x 600 dpi |
Scan Modes | Color: 48-bit input, 24-bit output Grayscale: 16-bit input, 8-bit output B/W: 1-bit |
ADF Capacity | 1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs) 2. 30 sheets (Business Cards, landscape feeding) 3. Plastic Card, Max. thickness under 1.2 mm landscape feeding 4. Passport: Less 4.0 mm (0.15 in.) thickness (including carrier sheet)Note: To prevent passport damage, please scan with carrier sheet when scanning a passport. Maximum ADF capacity varies, depending upon paper weight. |
Scanning Speed ( ADF ) | 60 ppm/ 120 ipm (Grayscale/B&W mode, 200 dpi, A4 Portrait) 60 ppm/ 120 ipm (Grayscale/B&W mode, 300 dpi, A4 Portrait) 60 ppm/ 120 ipm (Color mode, 200 dpi, A4 Portrait) 60 ppm/ 120 ipm (Color mode, 300 dpi, A4 Portrait) Note: Actual scanning speeds are affected by data transmission, software processing times with USB 3.0 connection and finally by the specification of the pc. |
Scanning Area (W x L) | Max: 216 x 5080 mm (8.5” x 200”) Min: 13.2 x 13.2 mm (0.52” x 0.52”) |
Acceptable Paper Sizes (W x L) | Max: 244 x 5080 mm (9.65” x 200”) Min: 50.8 x 50.8 mm (2” x 2”) |
Acceptable Paper Weight (Thickness) | 27 to 413 g/㎡ (7.2 to 110 Lbs) |
Multi-feed Detection | With ultrasonic technology |
Daily Duty Scan ( Sheets ) | 8,000 |
Separate Roller Lifetime (Scans) | 300,000 |
Pick Roller Lifetime (Scans) | 300,000 |
Friction Roller Lifetime (Scans) | 100,000 |
Action Button | 5 Buttons: Power, Up, Down, Cancel, Scan 9 function keys are all customizable. |
Power Supply | 24 Vdc/ 1.25 A |
Interface | USB 3.2 Gen 1×1, USB 3.2 Gen 1×1 (Host) x1 |
Net Weight | 4.1 Kgs (9.04 Lbs) |
Dimensions (W x D x H) | 319.9 x 298.2 x 236.6 mm (12.59″ x 11.74″ x 9.32″) |
Protocol | TWAIN Compliant |
Operating System | Windows 7 / 8 / 10 / 11
Linux compatibility is only available for system integrators. Please contact sales@plustek.com for more info. |
Hardware Requirements | 2.5 GHz CPU processor or higher[1] [1]Windows Recommended: 2.8 GHz Intel® Core™ i5 Processor with 4 CPU Cores or higher 4 GB RAM minimum (Recommended: 8 GB or more) 6 GB of hard-disk space for program installation USB Port: USB 3.0 Port (USB 2.0/1.1 supported) Display dimensions of 1024×768 or greater |
Bundled Software | Plustek DocAction Plustek DocTWAIN |
Built-in OCR | Plustek OCR (Powered by ABBYY® FineReader®) |
