Synology FlashStation FS200T | Compact 6-Bay All-Flash Desktop Storage Solution
The Synology FS200T is an ultra-compact 6-bay all-flash storage server designed to deliver snappy performance and low latency in a near-silent desktop footprint. Powered by Synology DiskStation Manager (DSM), it provides seamless file sharing, rapid local networking, and complete data protection for home offices, creative professionals, and edge locations.
Engineered for Compact All-Flash Performance:
- Compact All-Flash Design: 6 hot-swappable 2.5″ SATA SSD bays in a sleek, ultra-quiet desktop chassis.
- Reliable Processing: Quad-core Intel Celeron J4125 processor with 4GB DDR4 memory (expandable up to 8GB).
- Fast Local Networking: Built-in 2.5GbE port for accelerated file transfers and a 1GbE port for link aggregation or failover redundancy.
Specification
| CPU | CPU Model | Intel Celeron J4125 |
|---|---|---|
| CPU Quantity | 1 | |
| CPU Cores | 4 | |
| CPU Threads | 4 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2.0 (base) / 2.7 (turbo) GHz | |
| Hardware Encryption Engine | ||
| Memory | System Memory | 4 GB DDR4 non-ECC |
| Memory Module Pre-installed | 4 GB (4 GB × 1) | |
| Total Memory Slots | 2 | |
| Maximum Memory Capacity | 8 GB (4 GB × 2) | |
| Notes |
| |
| Storage | Drive Bays (See all supported drives) | 6 × 2.5″ SATA SSD |
| Hot Swappable Drive* | ||
| Notes |
| |

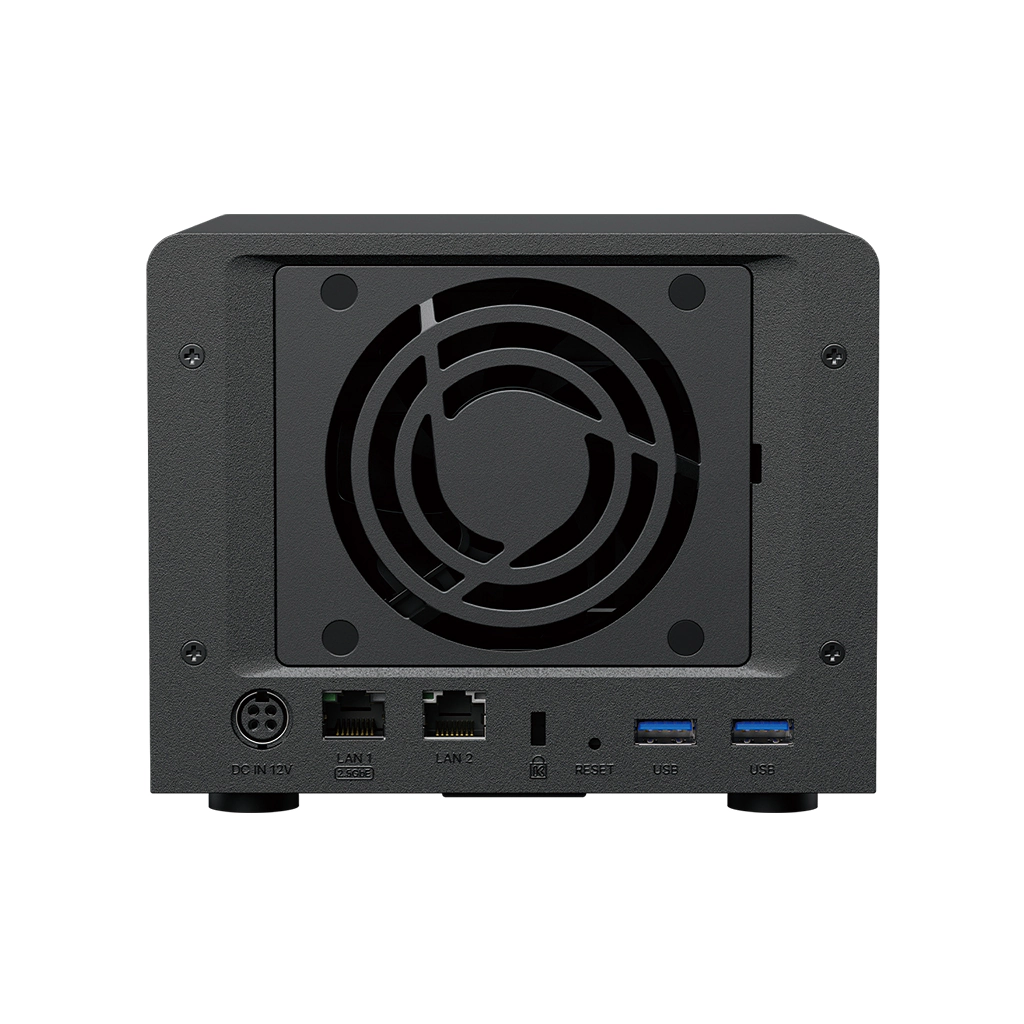

| External Ports | RJ-45 1GbE LAN Port | 1 |
| RJ-45 2.5GbE LAN Port | 1 | |
| USB 3.2 Gen 1 Port | 2 | |
| Notes | This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. | |
| Appearance | Size (Height × Width × Depth) | 121 mm × 151 mm × 175 mm |
| Weight | 1.4 kg | |
| Others | System Fan | 80 mm × 80 mm × 1 pcs |
| Fan Speed Mode |
| |
| Easy Replacement System Fan | ||
| Brightness Adjustable Front LED Indicators | ||
| Power Recovery | ||
| Noise Level | 21.3 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 65 watts | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 25.51 watts (Access) 19.06 watts (HDD Hibernation) | |
| British Thermal Unit | 86.99 BTU/hr (Access) 64.99 BTU/hr (HDD Hibernation) | |
| Notes |
| |
| Temperature | Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Operating Humidity | 8% to 80% RH | |
| Storage Humidity | 5% to 95% RH | |
| Certification |
| |
| Warranty | 3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus | |
| Notes |
| |
| Environment | RoHS Compliant | |
| Packaging Content |
| |
