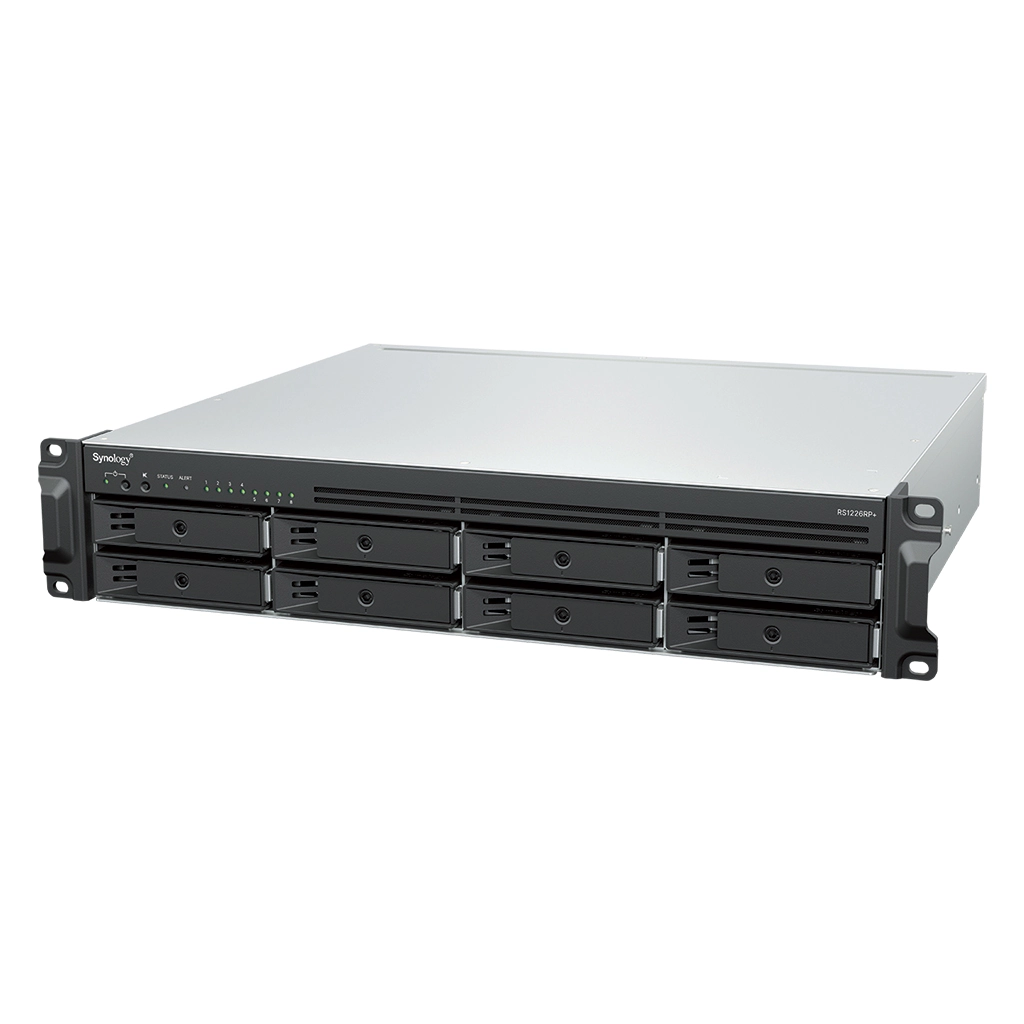

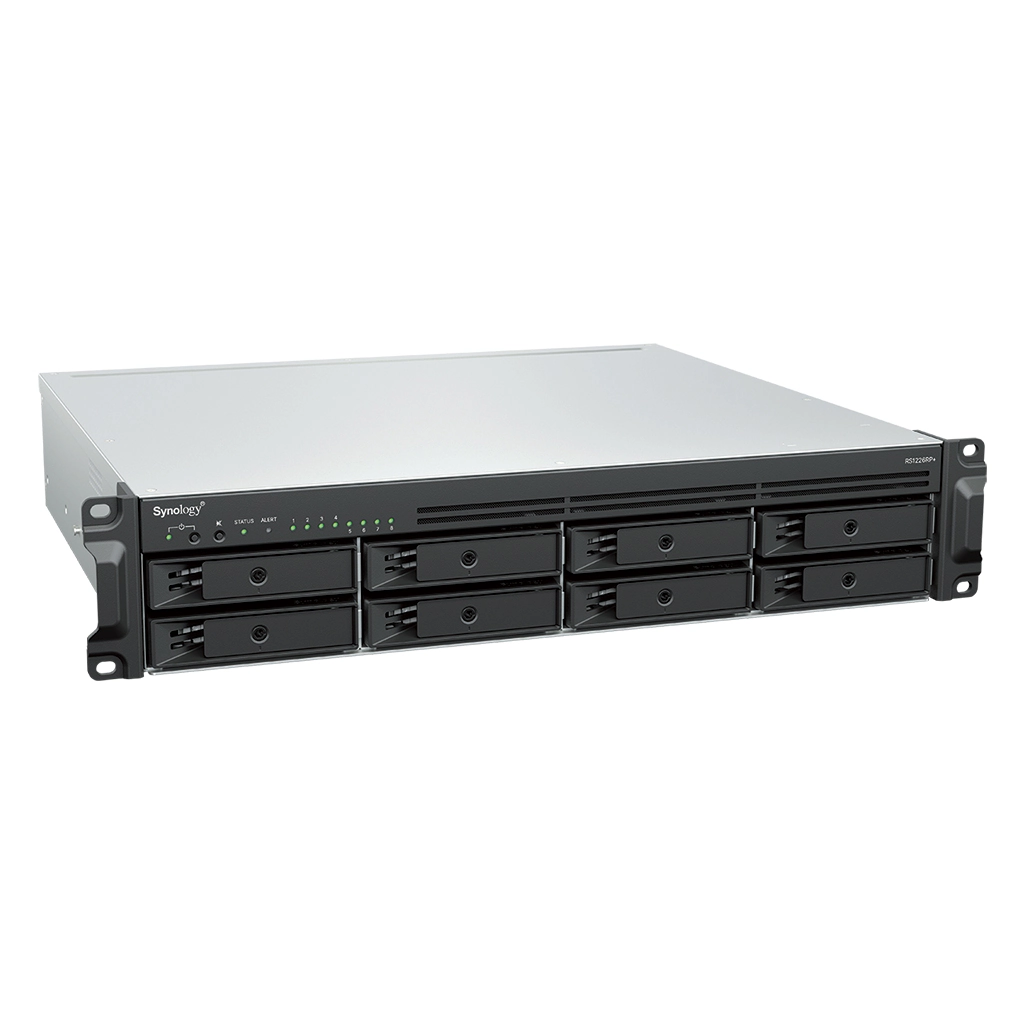

Synology RackStation RS1226RP+ | 8-Bay 2U Redundant Power NAS
The Synology RackStation RS1226RP+ is a compact 2U 8-bay rackmount NAS engineered to deliver flexible storage deployment, streamlined data management, and continuous system uptime. Powered by Synology DiskStation Manager (DSM), it incorporates dual redundant power supplies and robust expansion options, making it an ideal choice for growing businesses and branch office operations.
Optimized for Scalable Data Resilience:
- Robust Compute Engine: AMD Ryzen V1500B 4-core 2.2 GHz processor with 4GB DDR4 ECC RAM (expandable up to 32GB).
- Flexible Storage Capacity: 8 native drive bays, expandable up to 12 bays using a Synology RX426 expansion unit.
- Redundant Power & Expandability: Dual redundant power supplies, dual Gigabit LAN ports, and a PCIe Gen 3 slot for optional 10/25GbE networking or M.2 NVMe SSD caching.
Specification
|
Hardware Specifications
|
RS1226RP+
|
RS1226+
|
|
|---|---|---|---|
| CPU | CPU Model | AMD Ryzen V1500B | AMD Ryzen V1500B |
| CPU Quantity | 1 | 1 | |
| CPU Cores | 4 | 4 | |
| CPU Threads | 8 | 8 | |
| CPU Architecture | 64-bit | 64-bit | |
| CPU Frequency | 2.2 GHz | 2.2 GHz | |
| Hardware Encryption Engine | |||
| Memory | System Memory | 4 GB DDR4 ECC SODIMM | 4 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 4 GB (4 GB × 1) | 4 GB (4 GB × 1) | |
| Total Memory Slots | 2 | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB × 2) | 32 GB (16 GB × 2) | |
| Notes |
|
||
| Storage | Drive Bays (See all supported drives) |
8 × 3.5″ SATA HDD or 2.5″ SATA SSD
2 × M.2 2280 NVMe SSD
|
8 × 3.5″ SATA HDD or 2.5″ SATA SSD
2 × M.2 2280 NVMe SSD
|
| Maximum Drive Bays with Expansion Unit | 12 (RX426 × 1) | 12 (RX426 × 1) | |
| Hot Swappable Drive* | |||
| Notes |
|
||

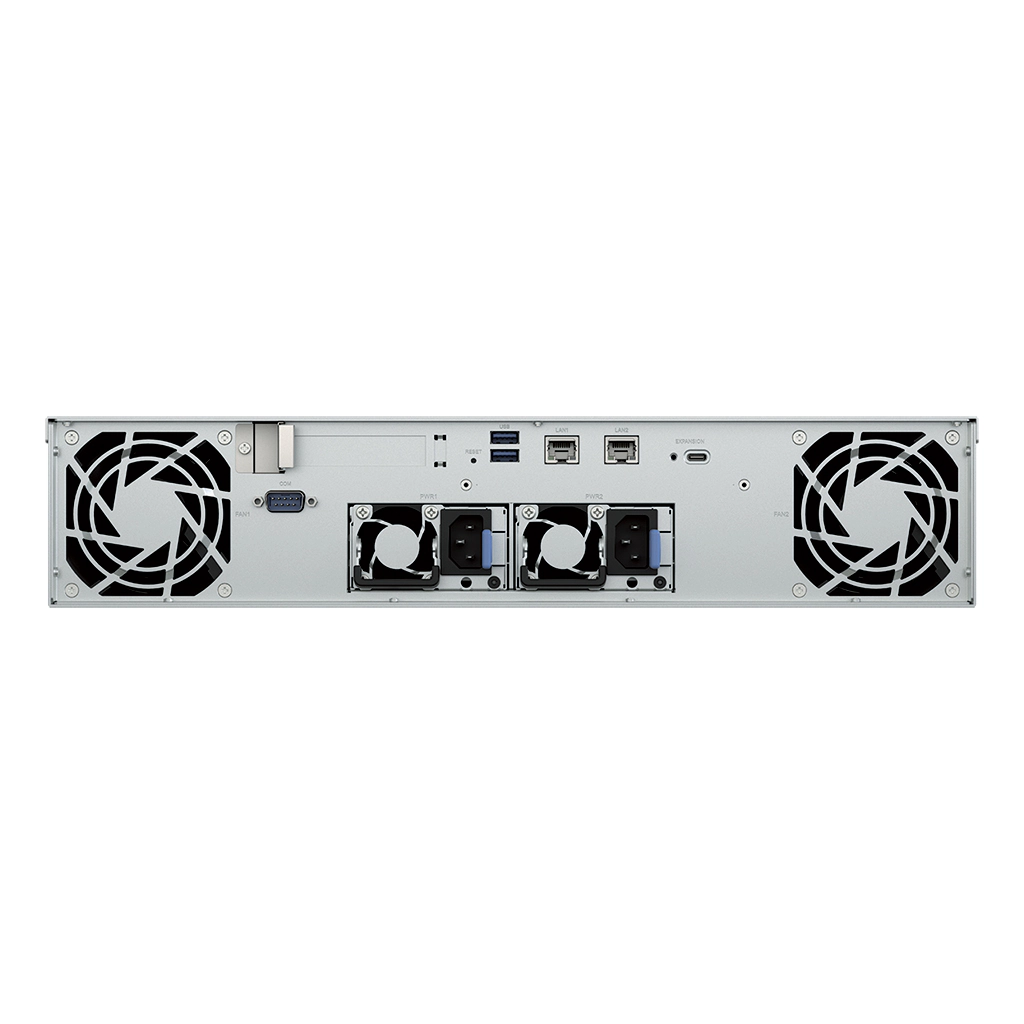

| External Ports | RJ-45 2.5GbE LAN Port | 2 | 2 |
| USB 3.2 Gen 1 Port | 2 | 2 | |
| Expansion Port | 1 | 1 | |
| Expansion Port Type | USB Type-C | USB Type-C | |
| PCIe | PCIe Expansion | 1 × Gen3 x8 slot (x4 link) | 1 × Gen3 x8 slot (x4 link) |
| Appearance | Form Factor (RU) | 2U | 2U |
| Size (Height × Width × Depth) | 88.3 mm × 481.9 mm × 398.4 mm | 88 mm × 482 mm × 306.6 mm | |
| Weight | 8.9 kg | 6.8 kg | |
| Rack Installation Support* | 4-post 19″ rack (Synology Rail Kit – RKS-02) | ||
| Notes | The rail kit is sold separately | ||
| Others | System Fan | 80 mm × 80 mm × 2 pcs | 80 mm × 80 mm × 2 pcs |
| Fan Speed Mode |
|
|
|
| Power Recovery | |||
| Noise Level | 22.8 dB(A) | 23.3 dB(A) | |
| Scheduled Power On / Off | |||
| Wake on LAN / WAN | |||
| Power Supply Unit / Adapter | 550 watts | 250 watts | |
| Redundant Power Supply | – | ||
| AC Input Power Voltage | 100 V to 240 V AC | 100 V to 240 V AC | |
| Power Frequency | 50/60 Hz, Single Phase | 50/60 Hz, Single Phase | |
| Power Consumption | 81.82 watts (Access) 30.58 watts (HDD Hibernation) |
72.33 watts (Access) 20.74 watts (HDD Hibernation) |
|
| British Thermal Unit | 279.37 BTU/hr (Access) 104.41 BTU/hr (HDD Hibernation) |
246.97 BTU/hr (Access) 70.82 BTU/hr (HDD Hibernation) |
|
| Notes |
|
|
|
| Temperature | Operating Temperature | 0°C to 35°C (32°F to 95°F) | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | -20°C to 60°C (-5°F to 140°F) | |
| Operating Humidity | 8% to 80% RH | 8% to 80% RH | |
| Storage Humidity | 5% to 95% RH | 5% to 95% RH | |
| Certification |
|
|
|
| Warranty | 3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus | 3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus | |
| Notes |
|
||
| Environment | RoHS Compliant | RoHS Compliant | |
| Packaging Content |
|
|
|
