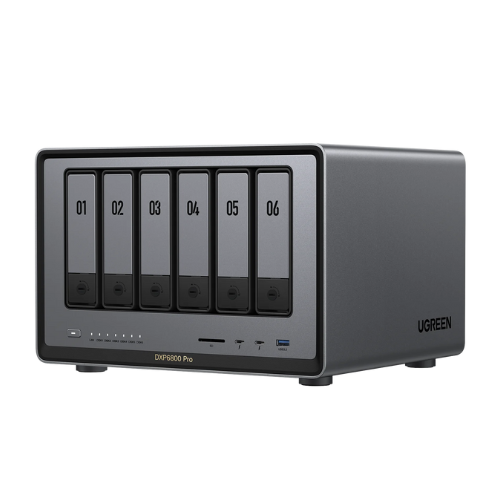

UGREEN NASync DXP6800 Pro | 6-Bay NAS with 8K HDMI Output
6-Bay NAS with Dual 10GbE Network Ports
The UGreen NASync DXP6800 Pro is a 6-bay NAS featuring a powerful Intel i5-1235U 10-core CPU and 8GB DDR5 RAM, expandable to 64GB. It boasts dual 10GbE ports, two Thunderbolt 4 ports, and dual M.2 NVMe slots, ideal for professional and creative workloads. Running UGOS Pro, it offers robust data management, up to 160TB capacity, and 8K HDMI output.
- CPU : Intel i5-1235U
- Memory : 8GB DDR5
- Operating System : UGOS Pro
Specification
UGREEN NASync DXP6800 Pro
| SKU | 25898 |
| Model | DXP6800 Pro |
| Supported language | English, Deutsch, Français, Español, Português, Italiano, 中文, 日本語 |
| Drive Bays | 6-Bay (SATA) |
| Operating System | UGOS Pro |
| CPU Model | 1235u |
| CPU Brand & Architecture | Intel X86 12th Generation Intel® Core™ i5 10 Cores 12 Threads |
| Memory (RAM) | 8GB DDR5 |
| ODECC | Supported |
| Expandable RAM (Max) | 64GB |
| Flash Memory (System Disk) | SSD 128GB |
| SATA Drive Bays | 6 |
| M.2 SSD Drive Slots | 2 |
| RAID | JBOD/Basic/0/1/5/6/10 |
| Maximum Storage | 160TB (6x 24TB + 2x 8TB) |
| LAN Ports (RJ45) | 2x 10GbE |
| PCIe Expansion | 1x PCIe x4 |

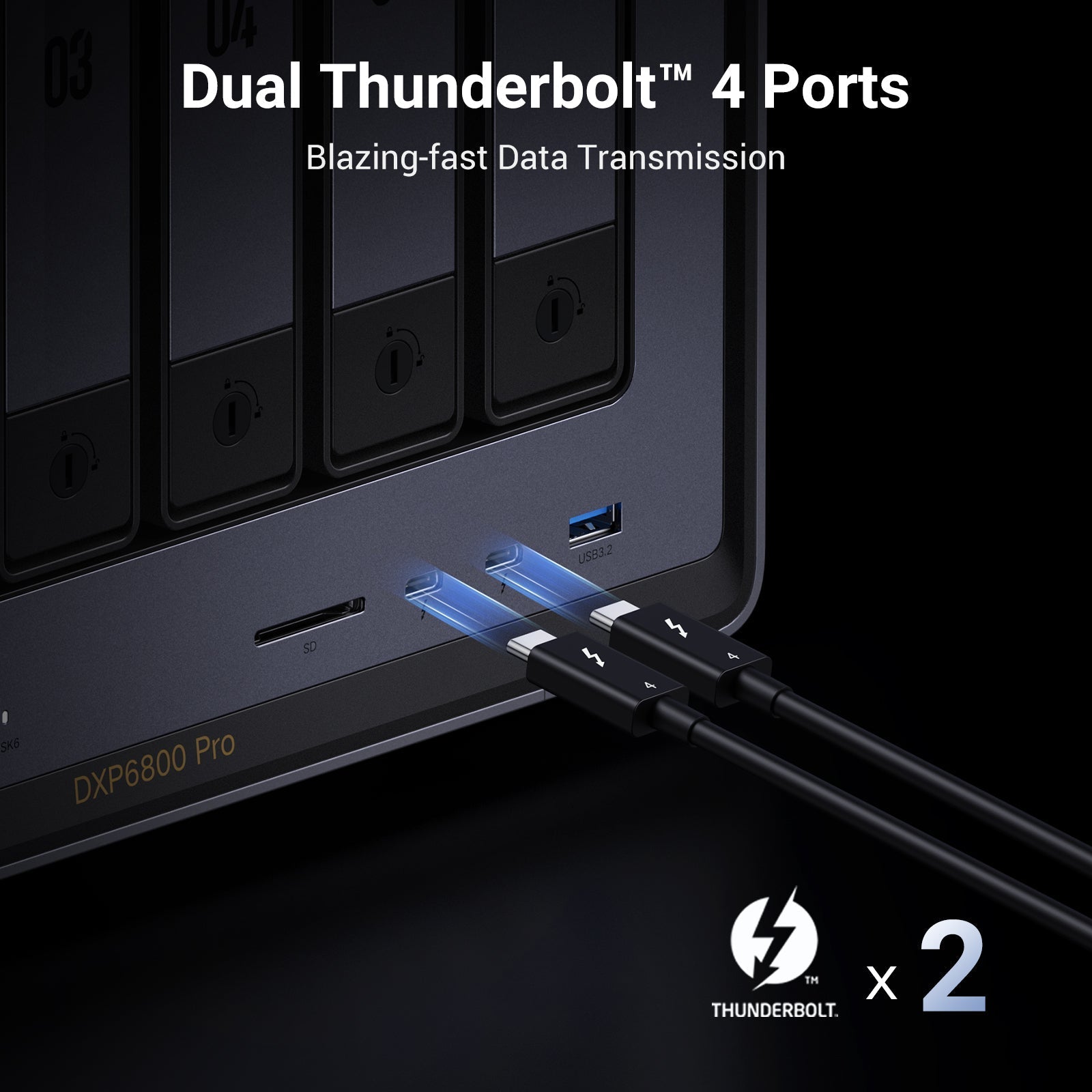

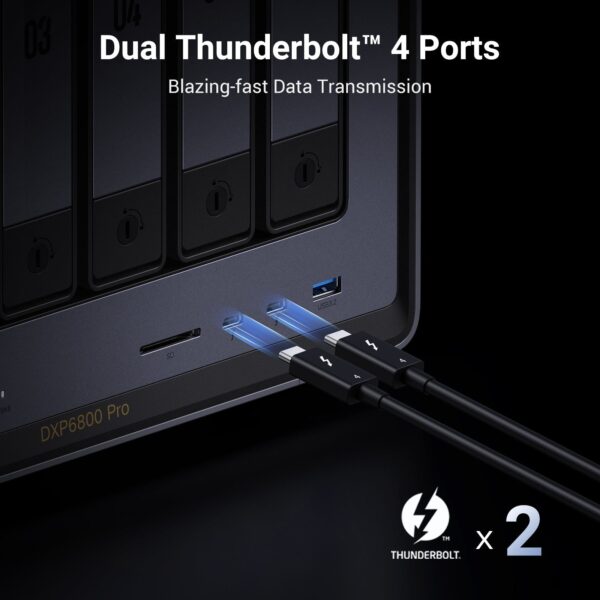

| Thunderbolt™ 4 Ports | 2 |
| High-Speed USB Ports (Front Panel) | 2x Thunderbolt 4 (40Gb/s) |
| High-Speed USB Ports (Rear Panel) | 2x USB-A (10Gb/s) |
| USB 2.0 (Rear Panel) | 2x USB-A (480Mb/s) |
| SD Card Reader | SD 4.0 |
| HDMI | 8K |
| Wi-Fi | – |
| UGREEN NASync DXP6800 Pro Dimensions | L11.54×W10.16×H7.87 inches |
| Power Consumption | 43.07 w(Access) 24.91 w(HDD Hibernation) |
