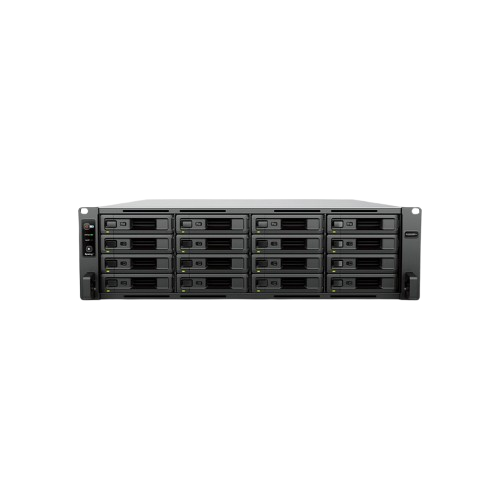

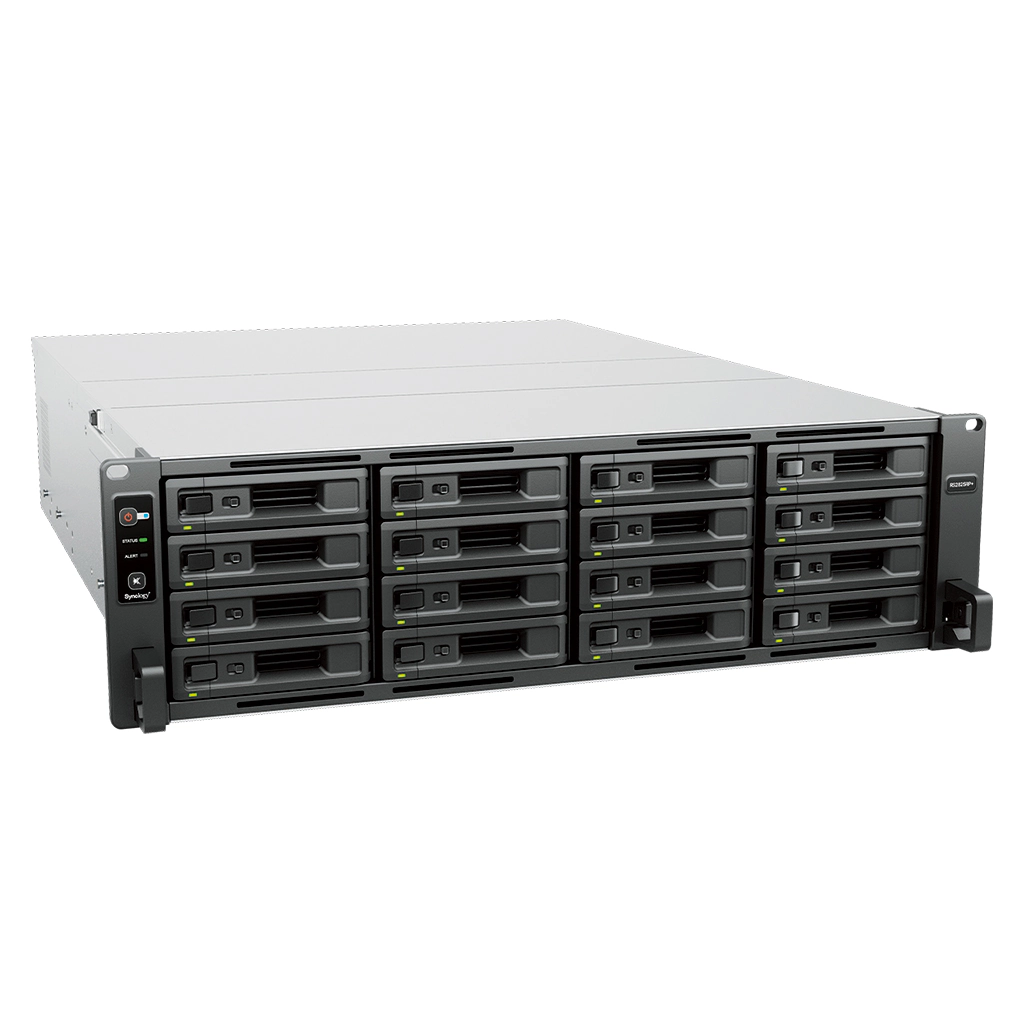

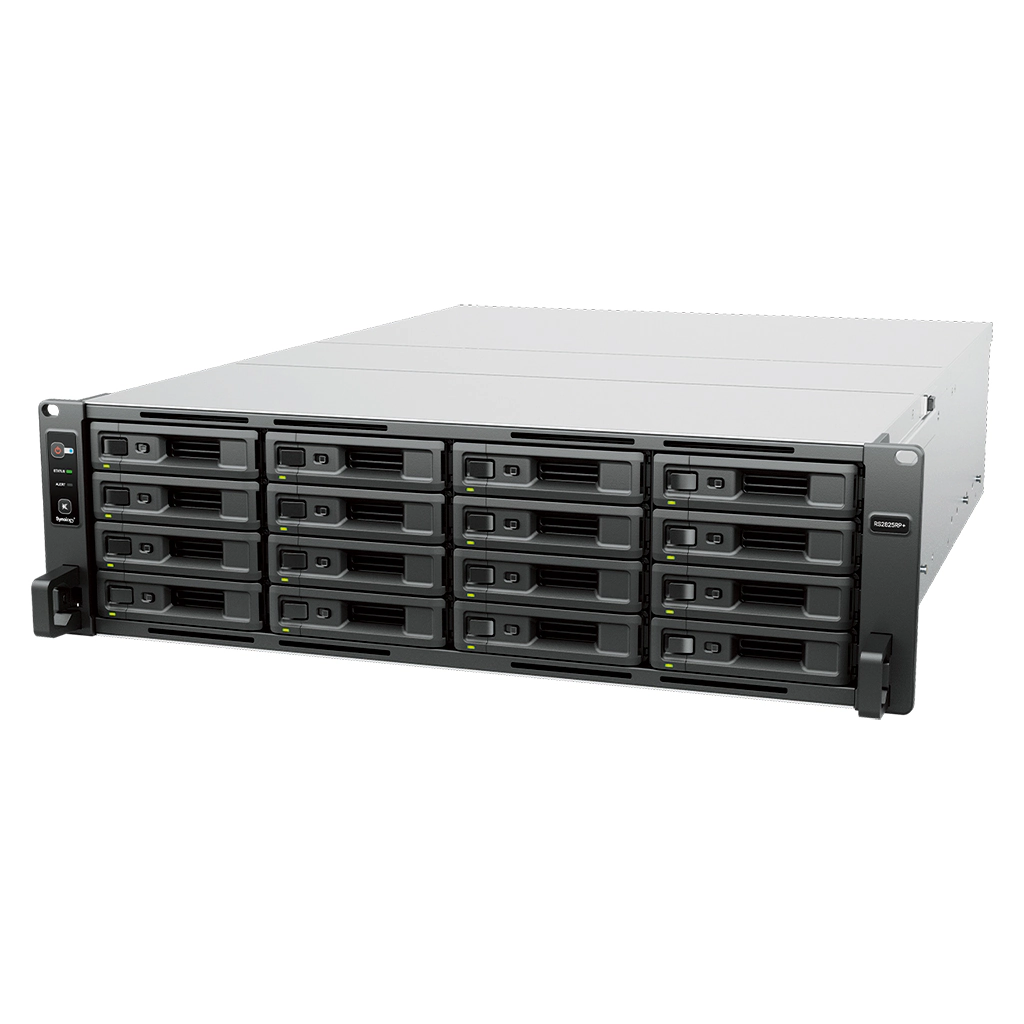

Synology RackStation RS2825RP+ | 16-Bay 3U Scalable Rackmount NAS
The Synology RackStation RS2825RP+ is a 3U 16-bay rackmount NAS engineered for central data management, comprehensive backup, and secure file sharing. Powered by Synology DiskStation Manager (DSM), it features dual power supplies for maximum service uptime and enterprise-grade resilience across growing business environments.
Engineered for Business Continuity:
- Reliable Hardware: AMD Ryzen V1780B 4-core processor with 8GB DDR4 ECC RAM (expandable up to 32GB).
- Scalable Storage Capacity: 16 native drive bays, expandable up to 28 bays (up to 560TB raw capacity) using a Synology RX1225RP expansion unit.
- Redundant Power & Connectivity: Built-in 10GbE and dual 1GbE RJ-45 ports, dual power supply units for high availability, and a PCIe Gen 3 x8 slot for optional 10/25GbE networking or M.2 NVMe SSD cache cards.
Specification
| CPU | CPU Model | AMD Ryzen V1780B |
|---|---|---|
| CPU Quantity | 1 | |
| CPU Cores | 4 | |
| CPU Threads | 8 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 3.35 (base) / 3.6 (turbo) GHz | |
| Hardware Encryption Engine | ||
| Memory | System Memory | 8 GB DDR4 ECC UDIMM |
| Memory Module Pre-installed | 8 GB (8 GB × 1) | |
| Total Memory Slots | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB × 2) | |
| Notes |
| |
| Storage | Drive Bays (See all supported drives) | 16 × 3.5″ SATA HDD or 2.5″ SATA SSD |
| Maximum Drive Bays with Expansion Unit | 28 (RX1225RP × 1) | |
| Hot Swappable Drive* | ||
| Notes |
| |

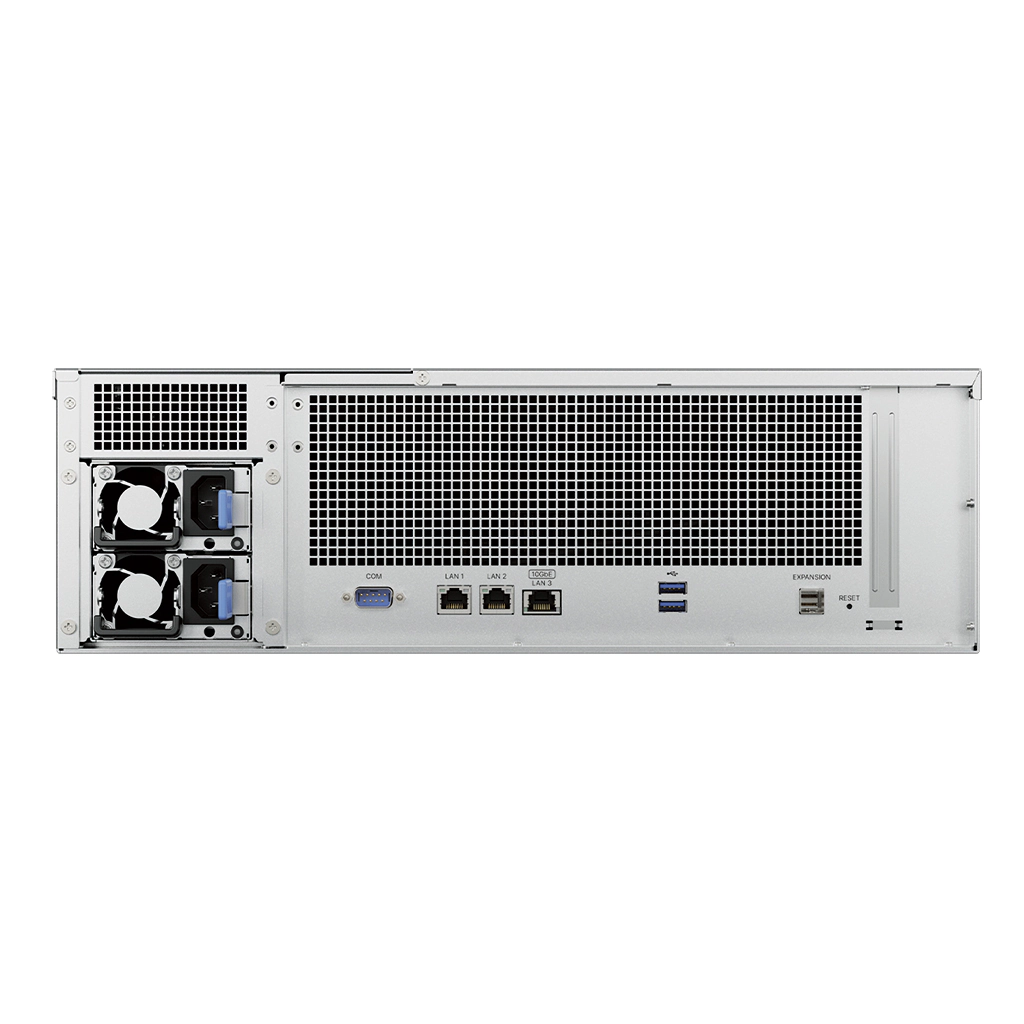

| External Ports | RJ-45 1GbE LAN Port | 2 |
| RJ-45 10GbE LAN Port | 1 | |
| USB 3.2 Gen 1 Port | 2 | |
| Expansion Port | 1 | |
| Expansion Port Type | Mini-SAS HD | |
| Notes | This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. | |
| PCIe | PCIe Expansion | 1 × Gen3 x8 slot (x4 link) |
| Appearance | Form Factor (RU) | 3U |
| Size (Height × Width × Depth) | 132.3 mm × 482 mm × 656.5 mm | |
| Weight | 17.3 kg | |
| Rack Installation Support* | 4-post 19″ rack (Synology Rail Kit – RKS-02) | |
| Notes | The rail kit is sold separately | |
| Others | System Fan | 80 mm × 80 mm × 3 pcs |
| Fan Speed Mode |
| |
| Easy Replacement System Fan | ||
| Power Recovery | ||
| Noise Level | 49.6 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 550 watts | |
| Redundant Power Supply | ||
| AC Input Power Voltage | 100 V to 240 V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 134.48 watts (Access) 50.81 watts (HDD Hibernation) | |
| British Thermal Unit | 459.17 BTU/hr (Access) 173.49 BTU/hr (HDD Hibernation) | |
| Notes |
| |
| Temperature | Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Operating Humidity | 8% to 80% RH | |
| Storage Humidity | 5% to 95% RH | |
| Certification |
| |
| Warranty | 3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus | |
| Notes |
| |
| Environment | RoHS Compliant | |
| Packaging Content |
| |
