UGREEN NASync DXP480T Plus | 4-Bay NAS with Thunderbolt 4 Ports
4-Bay NAS with M.2 SSD Drive Slots

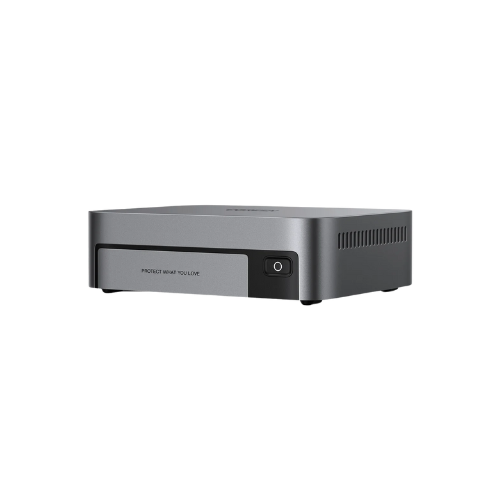

The UGreen NASync DXP480T Plus is a 4-bay DAS/NAS hybrid featuring an Intel Core i5-1235U CPU and 8GB DDR5 RAM, expandable to 64GB. It boasts dual Thunderbolt 4 ports for blazing-fast direct connection, a 10GbE port for network access, and M.2 NVMe slots for SSD caching or additional storage. It also includes 8K HDMI output for multimedia and runs on UGOS Pro.
- CPU : Intel i5-1235U
- Memory : 8GB DDR5
- Operating System : UGOS Pro
Specification
UGREEN NASync DXP480T Plus
| SKU | 25891 |
| Model | DXP480T Plus |
| Supported language | English, Deutsch, Français, Español, Português, Italiano, 中文, 日本語 |
| Drive Bays | 4 Slots (M.2 NVMe) |
| Operating System | UGOS Pro |
| CPU Model | 1235u |
| CPU Brand & Architecture | Intel X86 12th Generation Intel® Core™ i5 10 Cores 12 Threads |
| Memory (RAM) | 8GB DDR5 |
| ODECC | Supported |
| Expandable RAM (max) | 64GB |
| Flash Memory (System Disk) | SSD 128GB |
| SATA Drive Bays | – |
| M.2 SSD Drive Slots | 4 |
| RAID | JBOD/Basic/0/1/5/6/10 |
| Maximum Storage | 32TB (4x 8TB) |

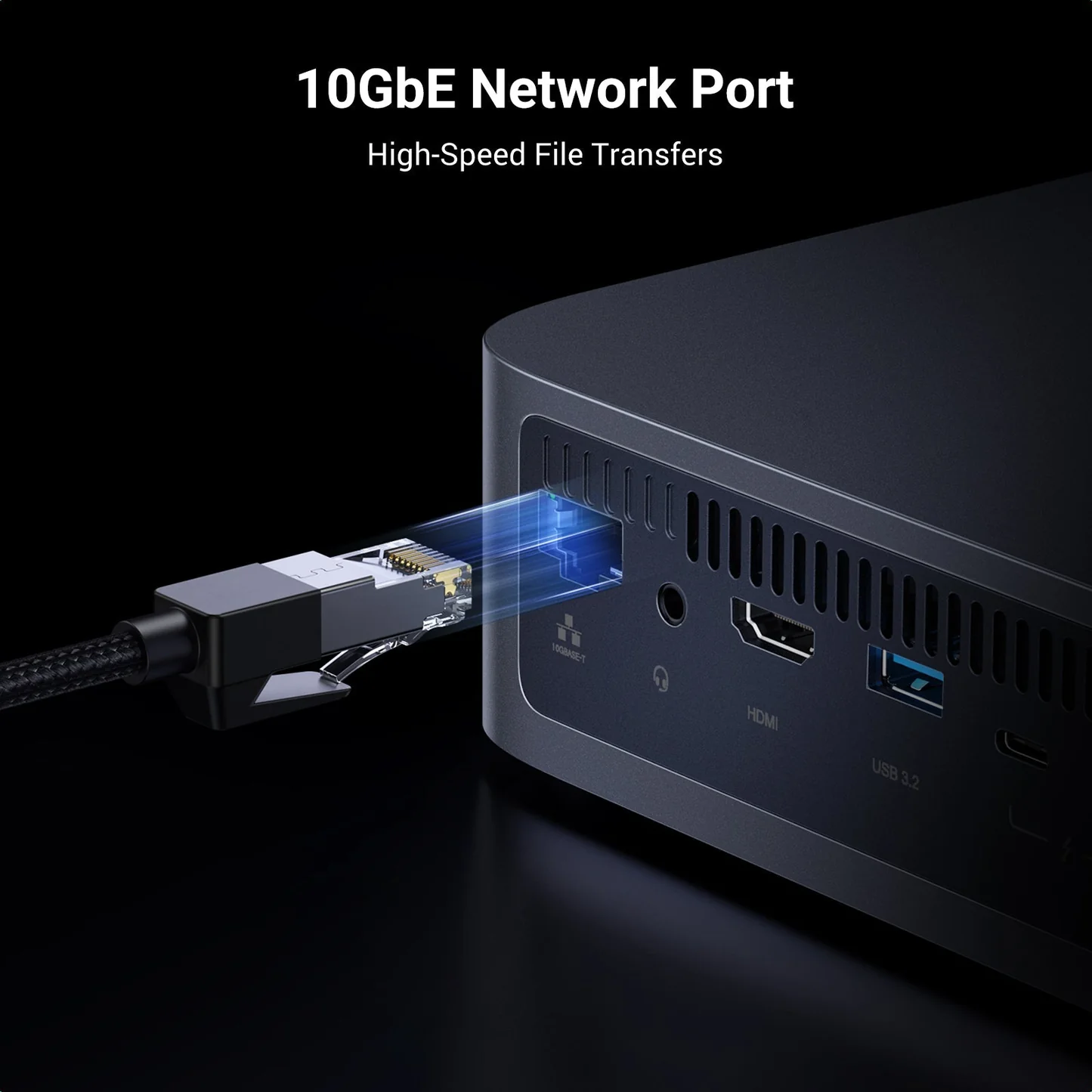

| LAN Ports (RJ45) | 1x 10GbE |
| PCIe Expansion | – |
| Thunderbolt™ 4 Ports | 2 |
| High-Speed USB Ports (Front Panel) | – |
| High-Speed USB Ports (Rear Panel) | 2x Thunderbolt 4 (40Gb/s), 1x USB-A (10Gb/s) |
| USB 2.0 (Rear Panel) | – |
| SD Card Reader | – |
| HDMI | 8K |
| Wi-Fi | Built-in |
| UGREEN NASync DXP480T Plus Dimensions | L7.05×W5.59×H2.05 inches |
| Power Consumption | 23.14 w(Access) 16.94 w(HDD Hibernation) |
